Company Snapshot

Headquarter: North India, with strong presence in Delhi NCR, Punjab , Haryana, Rajasthan, UP, Uttarakhand, J&K,Mumbai , Hyderabad , Bangalore, Chennai & Kolkata

Team Strength: 45+ professionals, each bringing 10+ years of expertise in Parking & Automation

Global Edge: Strategic technical collaboration with a leading European engineering firm

Clientele: Delivering solutions for both public and private sector projects across India

Core Offerings

Automated Stack Parking Systems – Space-optimized, intelligent parking solutions

Safety & Security Integrations – Advanced monitoring, access, and control technologies

Ticketing-Based Revenue Models – Smart monetization through automated ticketing systems

Building Automation & Access Control – Integrated solutions for modern infrastructure

Deployment Approach

Insight-Driven: In-depth understanding of client pain points

Tailored Design: Customized, scalable solution architecture

End-to-End Delivery: Seamless implementation backed by ongoing support

G+1 Stack (Model: Elevon-2STi)

Represents the next generation of space-efficient automated parking systems, designed to provide maximum vehicle accommodation within minimal ground space. With robust structural engineering, precision hydraulics, and a focus on operational safety, the Elevon Series sets a new standard in automated parking technology

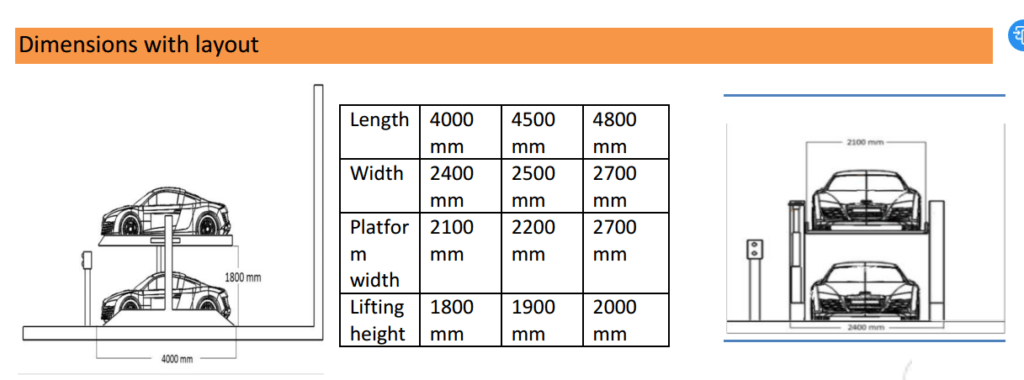

Technical Specifications: G+1 Stack (Model: Elevon-2STi)

Max Load	2000 kg
Length	4000–4800 mm
Width	2400–2800 mm
Platform Width	2100–2700 mm
Lifting Height	1800–2000 mm
No. of Parking Slots	2 Cars
Working Mechanism	Hydraulic / Electrically Operated
Material	MS Column & Hot-Dip Galvanized Platform
Motor	2.5 HP
Travel Speed	40–45 sec
Power Source	Main – AC 415V, 3PH, 50Hz \| Lighting – AC 220V, 1PH, 50Hz
Power Consumption	0.03 units per operation (approx.)
Operating Condition	-20°C to 55°C
Operation Control	Push Button Panel with Key Locking System
Structure	One horizontal platform supported on two or four pillars
Safety Systems	Emergency Stopper, Pallet Stopper, Anti-Fall Device, Safety Sensors, Cam limit Switch, Photo Sensor

G+2 Stack (Model: Elevon-3STi)

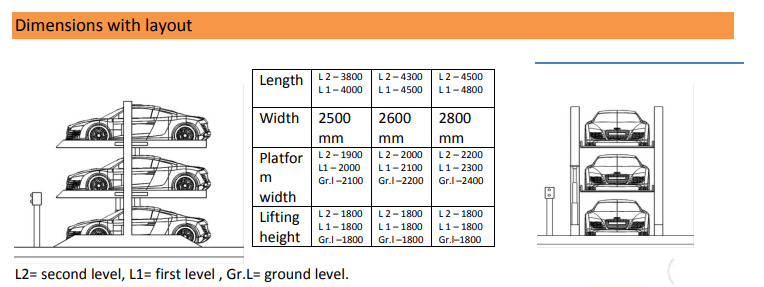

Technical Specifications: G+2 Stack (Model: Elevon-3STi)

Max Load	2000 kg per platform
Length	L1: 4000–4800 mm \| L2: 3800–4500 mm
Width	2500–2800 mm
Platform Width	GR: 2100–2400 mm \| L1: 2000–2300 mm \| L2: 1900–2200 mm
Lifting Height	1800 mm (all levels)
No. of Parking Slots	3 Cars
Working Mechanism	Hydraulic / Electrically Operated
Material	MS Column & Hot-Dip Galvanized Platform
Motor	2.5 HP
Travel Speed	90–100 sec
Power Source	Main – AC 415V, 3PH, 50Hz \| Lighting – AC 220V, 1PH, 50Hz
Power Consumption	0.06 units per operation (approx.)
Operation Control	Push Button Panel with Key Locking System
Structure	Two horizontal platforms on two or four pillars
Safety Systems	Emergency Stopper, Pallet Stopper, Anti-Fall Device, Safety Sensors, Cam limit Switch, Photo Sensor

Automates Puzzle Stack Parking

Multi-grid system = min. 2 grids (for 3 cars), max. 10 grids (for 19 cars)

Standard: Car weight max. 2.200 kg, wheel load: max. 550 kg

Option: Car weight max. 2.800 kg, wheel load: max. 700 kg

Multi-grid system = min. 2 grids (for 3 cars), max. 10 grids (for 19 cars)

Standard: Car weight max. 2.200 kg, wheel load: max. 550 kg

Option: Car weight max. 2.800 kg, wheel load: max. 700 kg

Technical Specifications: Puzzle Parking (Model: Elevon 33PZi)

MODEL	Elevon 33PZi (3X3 LEVEL HYDRAULIC PUZZLE)
NO OF CARS / UNIT	8 CARS
CAPACITY	2000 KGS. (CAR WEIGHT)
LIFTING MOTOR	2.2 Kw. HYDRAULIC POWER PACK
SLIDING MOTOR	0.75 Kw. GEARED MOTOR
LIFTING SPEED	4.5 MTRS / MIN.
SLIDING SPEED	4.5 MTRS / MIN.
POWER SUPPLY	415 V, 3 PHASE, 50Hz
POSITION (-1+2)	3 GROUND PALLET
	2 ON PALLET
	3 ON TOP PALLET
OPERATION	LIFTING MOVEMENT BY HYDRAULIC CYLINDERS
OPERATION	SLIDING MOVEMENT BY GEARED MOTOR
CONTROL	PLC CONTROL PANEL WITH PUSH BUTTON KEY
CONTROL OPTIONAL	PLC PROGRAMMED TOUCH SCREEN OPERATED

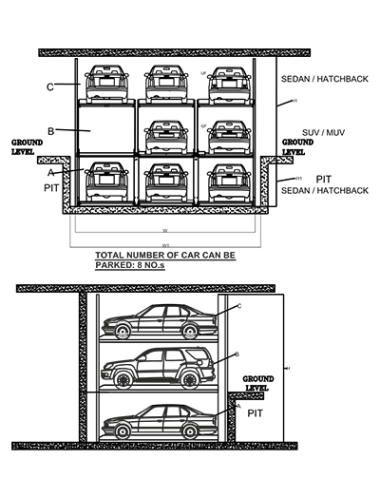

AS PER CIVIL, HEIGHT VARIES

THE CAR SIZES CAN BE PARKED ON SYSTEM AS PER BELOW HEIGHT AVAILABLE

HEIGHT	A IN PIT	B UPPER LEVEL	C UPPER LEVEL
6000 MM	1750 MM	1750 MM	1850 MM
6000 MM	1750 MM	1850 MM	1850 MM
5800 MM	1750 MM	1800 MM	1750 MM
5500 MM	1750 MM	1750 MM	1700 MM

LENGTH (L,1)	5500 MM
WIDTH (W1)	7500 MM
HEIGHT ABOVE GROUND LEVEL H1	4100 MM
PIT HEIGHT (-H1)	2100 MM
TOTAL HEIGHT = (-H1 + H1)	6200 MM

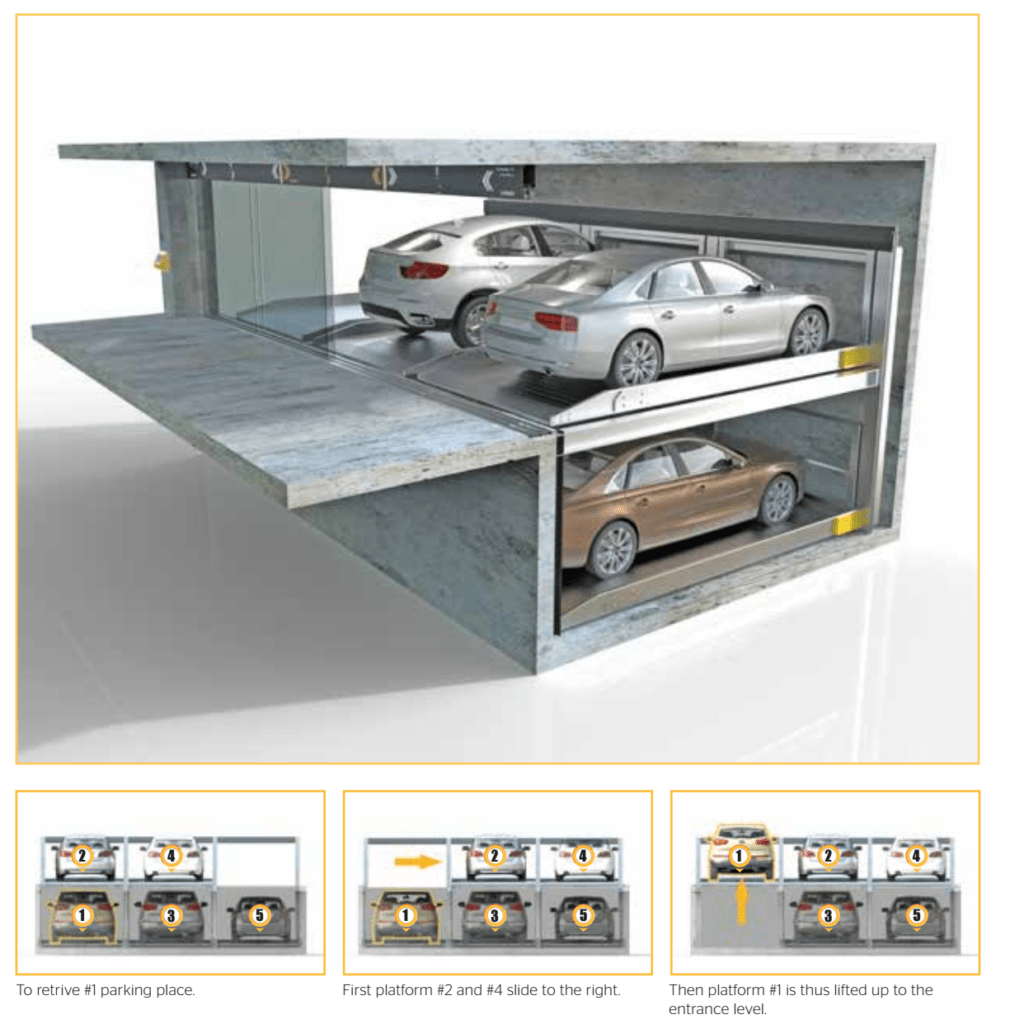

Puzzle Parking System

🔧 How It Works

Multi-Level Grid Structure with platforms that move vertically and horizontally
Software-Controlled Operation assigns optimal parking slots
Platform Rearrangement enables car retrieval without moving others
Entry via Bay or App with optional QR/smart card authentication
Hydraulic or Electric Motors drive smooth, synchronized movement
Ideal for High-Density Zones: Residential towers, malls, hospitals, commercial hubs

🛡️ Safety Features

Obstacle Detection Sensors prevent collision during movement
Limit Switches & Safety Barriers ensure platform stops at correct positions
Emergency Stop Function for instant halt
CCTV & Access Control Integration for security and traceability
Load Sensors & Vehicle Scanners verify safe parking conditions
Modular Steel Frames with seismic-grade anchoring

📦 Highlights

3X Space Optimization conventional parking
Low Land Requirement—ideal for urban infill and retrofits
Minimal Manual Intervention—fully or semi-automated
Customizable Configurations for indoor/outdoor setups
Certified for Indian & Global Standards

Boosts Property Value & Regulatory Compliance

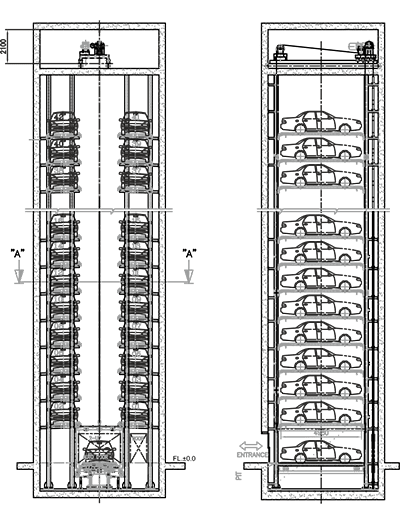

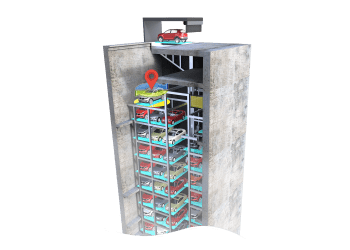

FULLY AUTOMATED TOWER CAR PARKING SYSTEM

50% Less Space Required
Vertical and underground stacking cuts land use dramatically.
Flexible Installation
Fits above ground, basement, or underground layouts.
Site-Specific Customization
Adapts to footprint, height, and vehicle mix.
Touch-Free Operation
No driving inside—automated parking and retrieval.
Secure & Low-Risk
Controlled access, surveillance, and zero human error.

FEATURES:

Accommodates 20/40 cars in a space otherwise occupied by two cars in a conventional parking

Easily accommodates a variety of cars Compact structure
Certified lifting capacity 2000 kg/car
Lifting speed 2.8 m/min
Sliding speed 0.30 min/car
Maximum stacking 8 to 25 Nos
Operation Push Button
Control PLC
Electrical Power 15 HP back Motor

Vertical Efficiency Fully Automated Premium-Grade Safety

🔧 How It Works

Elevator-Based Mechanism lifts vehicles vertically to assigned slots
Driver Parks at Entry Bay, system auto-transports car to vacant pallet
Rotational & Vertical Movement enables precise placement and retrieval
Software-Controlled Logic detects empty slots and manages flow
Supports 10–35 Levels (or more), scalable to site constraints
Minimal Footprint—fits 20+ cars in space of 2–4 conventional slots
Ideal for High-Density Zones: Residential towers, commercial hubs, hospitals, airports

🛡️ Safety Features

Obstacle Detection Sensors prevent collision during lift movement
Limit Switches & Pallet Locks ensure secure positioning
Emergency Stop & Manual Override for fail-safe operation
RFID / QR / App-Based Access for secure, traceable entry
CCTV Surveillance & Fire Safety Integration
Seismic-Grade Anchoring & Powder-Coated Steel Structure
Compliant with Indian & International Safety Standards

📦 Highlights

Zero Human Intervention—fully automated parking & retrieval
Low Operating Costs—no ventilation, minimal lighting, no manpower
Boosts Property Value & ROI—premium amenity for builders
Modular & Customizable—cylindrical or rectangular tower formats
Future-Ready—EV charging, smart city integration, 24/7 access

Products and Services

We offer a large variety of Boom Barriers (upto 6mtrs of length) with 100% responsibility cycle together with a huge variety of Toll Boom Barriers with 0.6 opening time. Boom Barriers are used to adjust and manage site visitors’ motion of car to ensure secure motion of site visitors.

We provide UHF Readers WEIGAND/TCP/IP upto 15mtr Read Range with Fast Tag Integration Facility supported with the aid of using high-quality Technically Sound Controllers with Cloud Data Facility.

We provide all sort of Turnstiles, Flap Barrier and P-Type Swing Gate Supported with Access Control. All these products are used to control flow of people along with access to homes and keep away from unauthorized entries and exit.

We provide sensible Ticket Dispenser/RFID/ANPR primarily based totally Parking Management System. This System allows in optimization of Parking Spaces and Monitor and control Parking Spaces along with Reducing Congestion and Traffic and Enhance the user experience and also helps in managing revenue collection.

We provide Ultrasonic Sensors/Camera primarily based on smart parking Guidance System. This System assists customers in figuring out Designated Parking slot and enables a smooth visitor flow, which saves lot of time spent on seeking a suitable parking space.

We provide an inclusive variety of Hydraulic Bollards/Crash Barrier/Road Blockers/Spike Barrier/Tyre Killer/x-ray Baggage Scanner/DFMD/HHMD/UVSS. All these products are used to stabilize any critical construction requirements, and to keep away any forceful or undesirable access or item within the construction.

We provide a complete solution for Sliding and Swing Gate Automation. Our variety consists of Sliding Gate Automation (upto 4500kg and upto 1000kg and 8mtr Length for single leaf for Swing Gate). These enable opening and closing of shutter thru Remote or PushButton instead of Manual efforts.

We provide whole variety of Sliding and Swing Doors with Sensors and Access Control. These merchandise assist in easy go with the drift of individuals together with preserving hygiene and additionally facilitates in power saving.

We provide Rolling Shutter Automation (for upto 320kg for Center Motor and 2000kg for Side Motor). These products allow smooth opening and closing of shutter via Remote or a Push Button Instead of Manual efforts.
